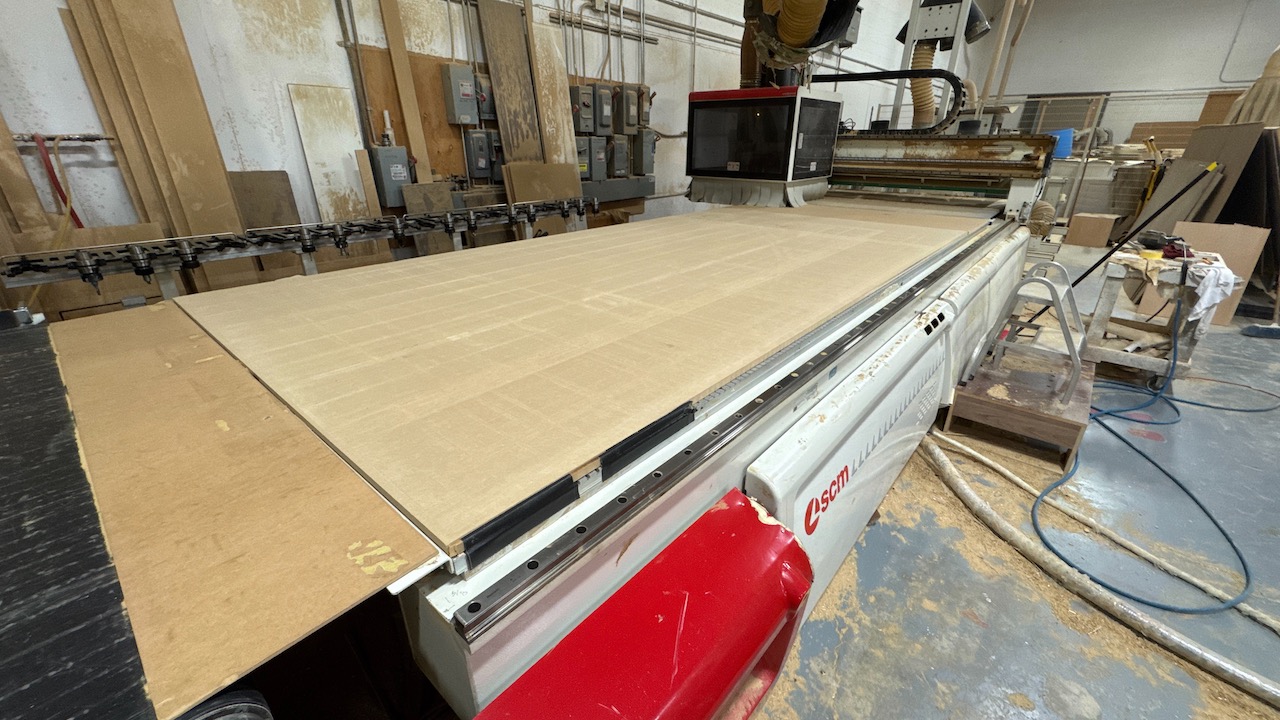

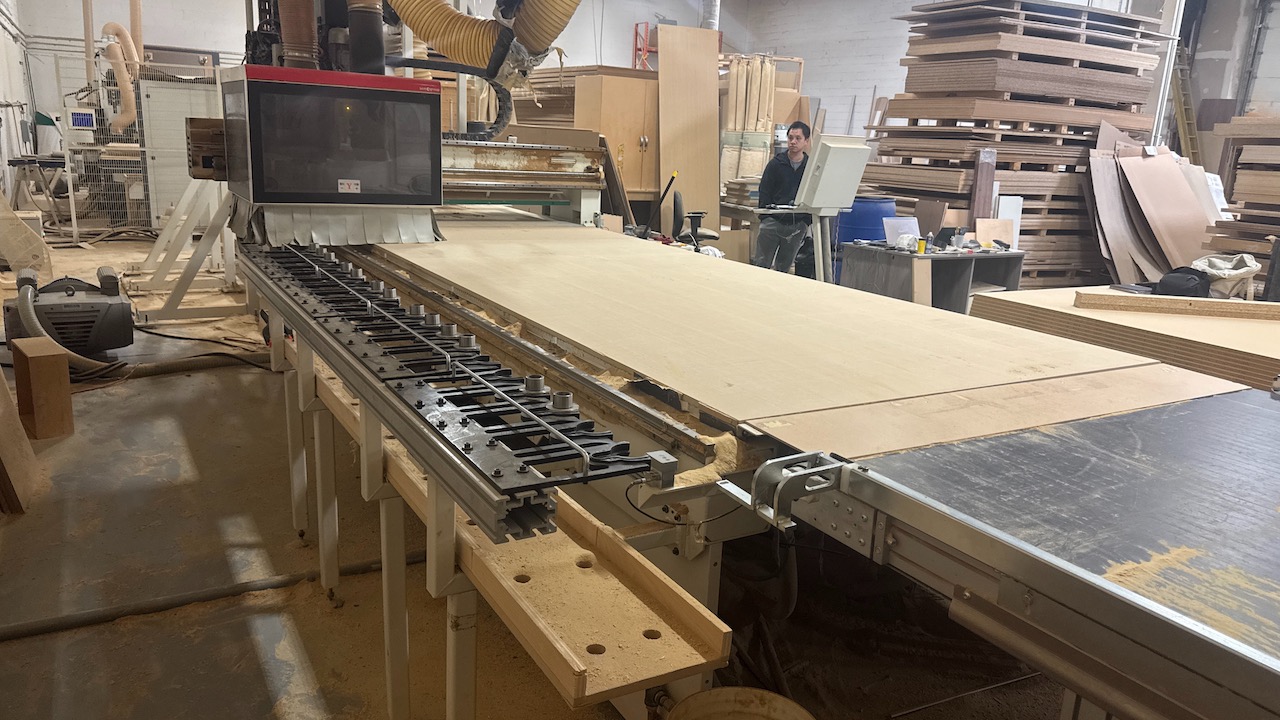

Just in - 2013 - SCM 5 x 10 ATC 20 Pratix N15 CNC Router

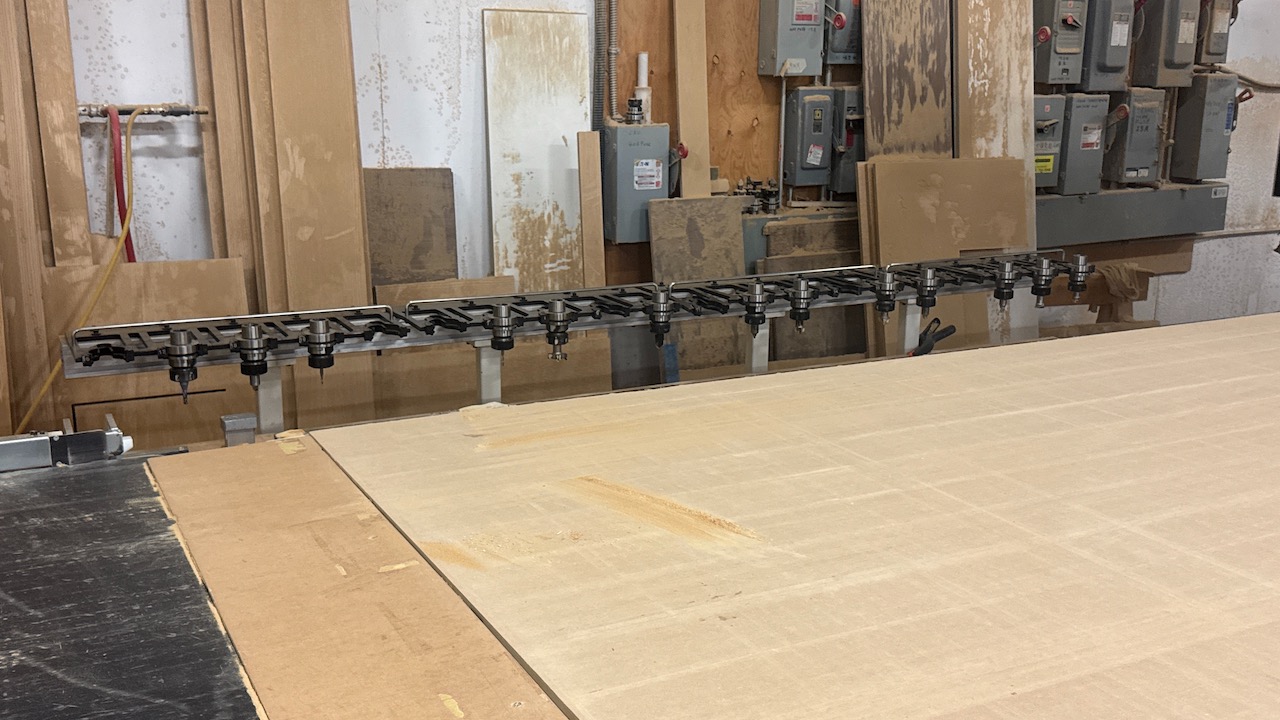

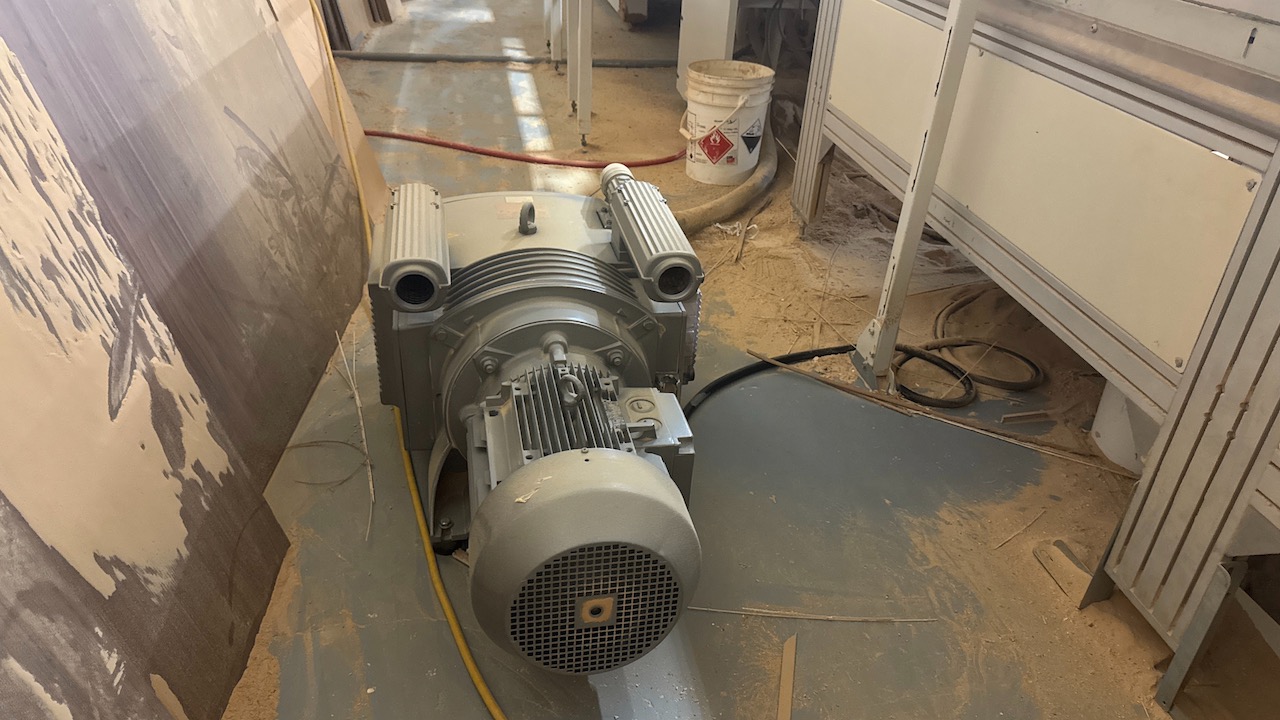

2013 - SCM 5 x 10 ATC 20 Pratix N15 • Aluminum 5' x 12' traveling "Bridge Gantry" and dual-vacuum table • 2 - 2013 Becker Vacuum Pumps • Main Spindle: 12 KW variable - speeds from 1,500 - 24,000 RPM; • Drill Bank - Total number of drilling spindles: 14 • Closed loop AC Servo drive system - X&Y," Rack & Pinion" • Ball Screw on X axis • Voltage: 600V /3 Ph / 60 Hz • Max Positioning Speed: "X" & "Y" Axis at 115 FPM (35 MPM), "Z" axis at 82 FPM (26 MPM) • 20 - position ATC - tool rack mounted on side of machine • Voltage: 600V /3 Ph / 60 Hz • Software: Mozaic - Monthly plan not included • Footprint: Length 212” – Width: 70” Gantry: 96” H: 9’ • Process area X axis - 3660 mm, 12’, Y axis - 1550 mm – 5’ Under power for inspection - Location: Richmond Hill Call Jim – www.cncsales.ca – 905 745 6663 All Descriptions, Specifications and Features are correct to the best of our knowledge. Interested buyers should verify before purchasing. Buyer is responsible to make sure all local regulations for installation and use are followed for area in which it is being installed. Government regulations may differ, depending on location.
