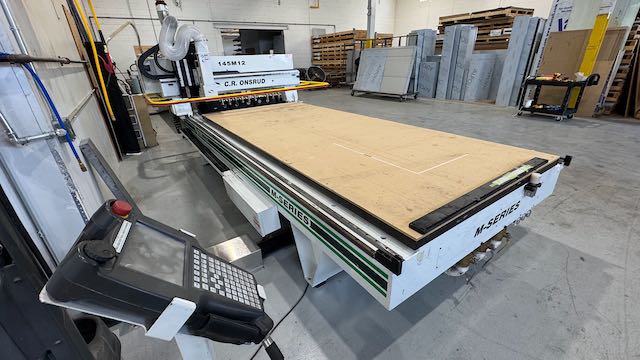

2017 Onsrud 145 M12 – CNC Router $112,500

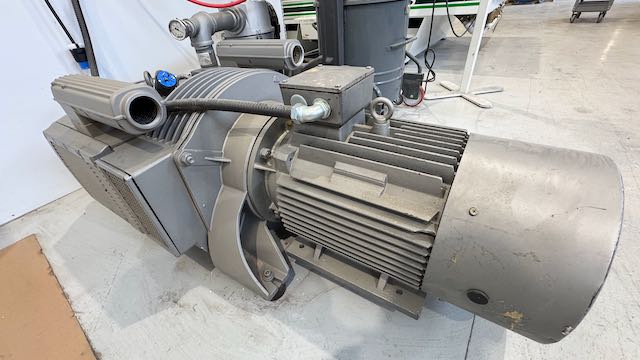

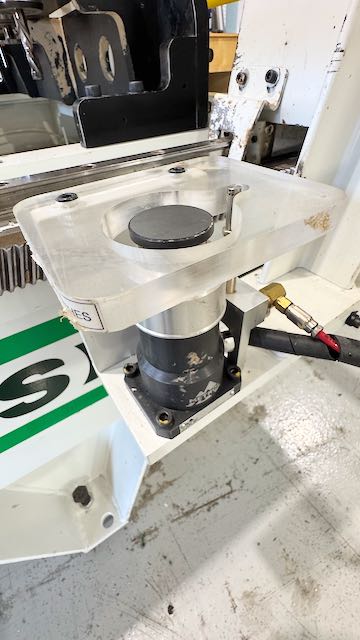

2017 Onsrud 145 M12 – CNC Router - Very clean, like new condition. for ... Cabinetry, Signage, Furniture, Millwork, Boat building, • 12 HP Spindle Variable to 24,000 RPM • Power: 460 Volts, 3 Phase • Tool Shank Taper: HSK-63 • Manual Greased Lubrication for bearing blocks • Dust Collection Center Kit over the Spindle – flex hose • 12 Tool – Fixed Rack A.T.C. • Maximum Machining Speed: Up to $1,400 IPM • 3 Vacuum Zones • Safety Fence • Air Conditioned Electronics Cabinet • Becker 12.5 HP Rotary Vane Vacuum Pump – 348 SCFM System 27”/hg • Pneumatic Pop-UP Perimeter Positioning Pins • Bench-Top Touch-Off Tool Setter • Approximate Footprint: 17 ft x 9.5 ft. • Est. Weight: 12,000 Lbs • X-Axis Travel 145 in • Y-Axis Travel 78 in • Z-Axis Stroke: 9 in • Bridge Clearance: 10 in under the gantry • Drive System: AC Servo Motors Under Power in Mississauga - Call Jim - www.cncsales.ca - 905 745 6663
